Zemic Avrupa HM8C Serisi Çelik Loadcell Beton Santrali Esit BS-BSA Muadil Yük Hücresi
Zemic Avrupa HM8C Serisi Çelik Loadcell Beton Santrali Esit BS-BSA Yük Hücresi
HM8C HERMATİK KAPAK IP69
Lama tipi çelik alaşım IP67 yük hücresi. Nikel kaplama, zamk mühürlü. Hastane yatakları, yer terazileri, dolum terazileri ve diğer elektronik tartım aletleri için uygundur.
| Products specification |
◆H8C load cells are available in the capacities 1Klb
to 20Klb and 0.5t to 10t.
◆Alloy steel,sealed by adhesive inside,oil-proof,waterproof
and anti-corrosion, suitable for all kinds of environment.

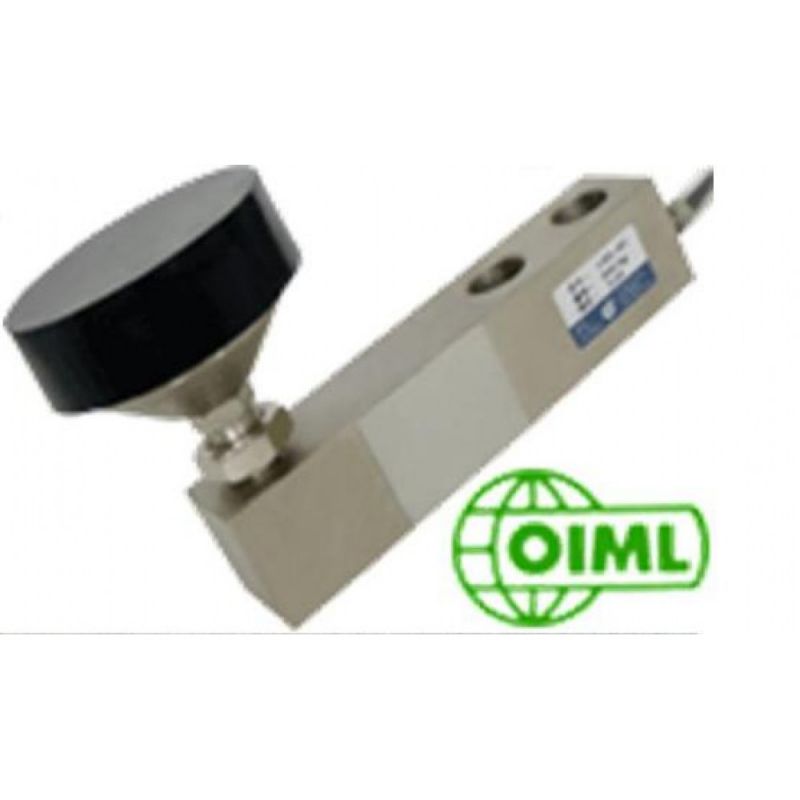

◆Single shear beam, easy for installation,suitable for

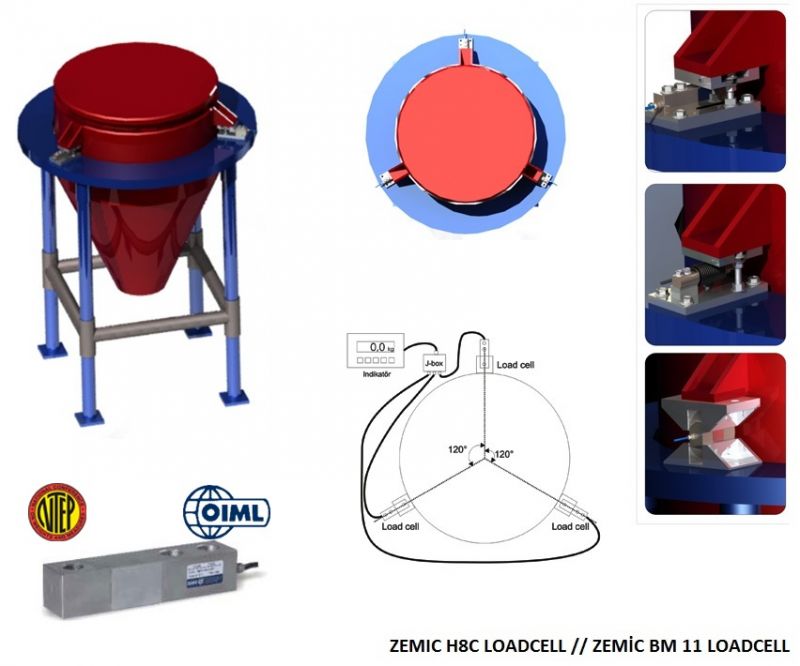

electronic platform scales,hopper scales and other electronic
weighing devices.
◆Safe and anti-explosive product,can be used in
atrocious environment and hazardous areas. |
Features
◆Capacity:1Klb to 20Klb
and 0.5t to 10t.
◆High accuracy.
◆Alloy steel construction.
◆Low profile.
◆With OIML approval.
◆With NTEP approval. |
Specifications
|
Capacity
|
t
|
0. 5/1/1.5/2/2.5/3/5/10
|
|
Klb
|
1/1.5/2/2.5/3/4/5/5KSE/7.5/10/15/20
|
| Accuracy class |
|
C2
|
C3
|
C4
|
A5M
|
B10M
|
| Approval |
|
|
OIML R60 C3
|
|
III 5000
multiford
|
III L 10000
multiford
|
|
Maximum number of
verification intervals
|
n max
|
2000
|
3000
|
4000
|
5000
|
10000
|
|
Minimum load cell
verification interval
|
v min
|
Emax/5000
|
Emax
/10000
|
Emax
/14000
|
Emax
/15000
|
Emax
/10000
|
|
Combined error
|
(%FS)
|
≤±0.030
|
≤±0.020
|
≤±0.018
|
≤±0.026
|
≤±0.050
|
|
Creep
|
%FS/30min
|
≤±0.024
|
≤±0.016
|
≤±0.012
|
≤±0.017
|
≤±0.040
|
|
Temperature effect
on sensitivity
|
(%FS/10℃)
|
≤±0.017
|
≤±0.011
|
≤±0.009
|
≤±0.013
|
≤±0.040
|
|
Temperature effect
on zero
|
(%FS/10℃)
|
≤±0.023
|
≤±0.015
|
≤±0.010
|
≤±0.014
|
≤±0.020
|
|
Output sensitivity
|
(mv/v)
|
2.0 ±0.002
|
3.0±0.003
|
|
Input resistance
|
(Ω)
|
350±3.5
|
|
Output resistance
|
(Ω)
|
350±3.5
|
|
Insulation resistance
|
(MΩ)
|
≥ 5000(100VDC)
|
|
Zero balance
|
(%FS)
|
1.0
|
|
Temperature,
compensated
|
(℃)
|
-10～+40
|
|
Temperature,allowed
|
(℃)
|
-35～+70
|
|
Excitation,
Recommended
|
(V)
|
5～12(DC)
|
|
Excitation,Max
|
(V)
|
18(DC)
|
|
Safe overload
|
(%FS)
|
150
|
|
Ultimate overload
|
(%FS)
|
300
|
Note:Output sensitivity of S1 type is 2.0 ±0.002
Outline Dimension mm(inch)
|
Capacity
|
L
|
L1
|
L2
|
L3
|
L4
|
H
|
H1
|
W
|
W1
|
D
|
d
|
M
|
|
0.5t,1～2t
1～4K,
5KSE
|
130
(5.12)
|
15.8
(0.62)
|
25.4
(1.0)
|
76.2
(3.0)
|
54.2
(2.13)
|
31.8
(1.25)
|
15.8
(0.62)
|
31.8
(1.25)
|
34
(1.34)
|
13.5
(0.53)
|
13.5
(0.53)
|
M12×1.75
1/2
－20UNF
|
|
2.5～5t
5～10K
|
171.5
(6.75)
|
19.1
(0.75)
|
38.1
(1.5)
|
95.3
(3.75)
|
77.2
(3.04)
|
38.1
(1.5)
|
18.8
(0.74)
|
38.1
(1.5)
|
40
(1.57)
|
19.8
(0.78)
|
19.8
(0.78)
|
M18×1.5
3/4
－16UNF
|
|
10t,20K
|
222.3
(8.75)
|
25.4
(1.0)
|
50.8
(2.0)
|
120.7
(4.75)
|
101.6
(4)
|
50.8
(2.0)
|
25.4
(1.0)
|
50.8
(2.0)
|
52.4
(2.06)
|
26.92
(1.06)
|
26
(1.02)
|
M24×2
1
－12UNF
|
|
